Photo Album: Mesa Arizona Foundation Repair 8.12.19

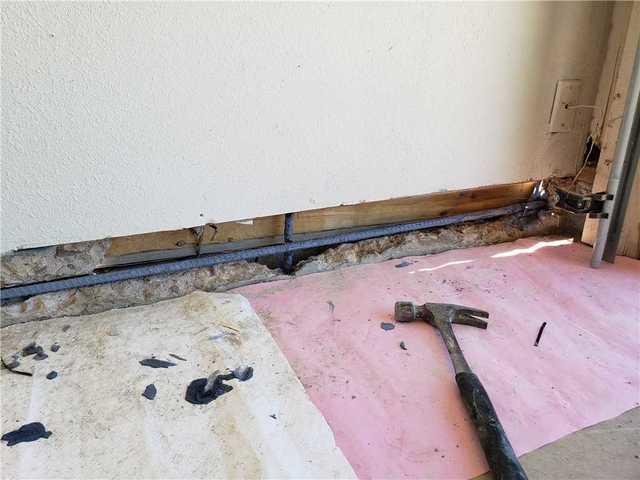

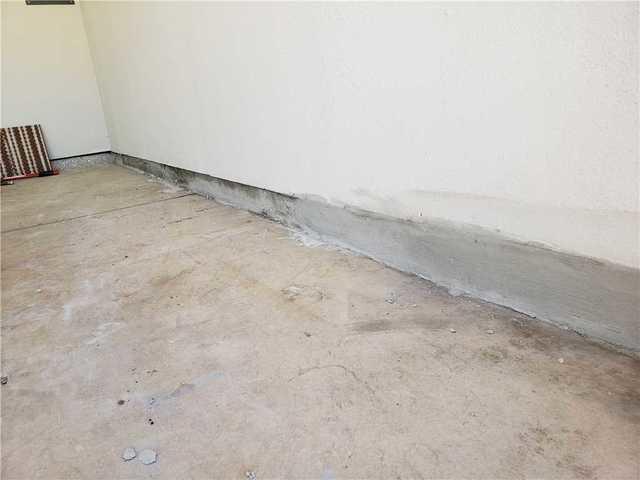

This 1970's wood frame home was showing symptoms of a foundation issue. These symptoms included doors out of square, dry wall cracks & interior slab cracks. An Engineered analysis was completed & heave pattern was discovered. Foundation heave can occur when the soils beneath the home consist of expansive clay soils. For this project, the repair plan included a stem wall repair, crack stitching & the MoistureLevel Smart Foundation System to address the foundation heave issue.

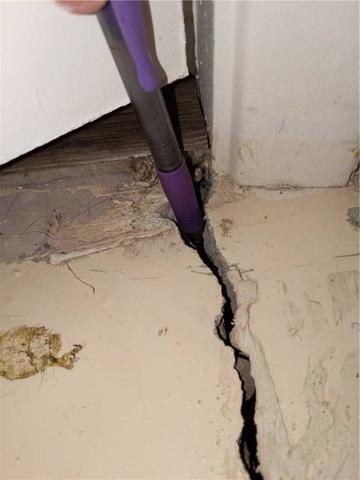

Floor Slab Crack - Mesa, Arizona

Slab cracks are a common symptom of a foundation issue. This crack was crack stitched as part of the overall repair plan.

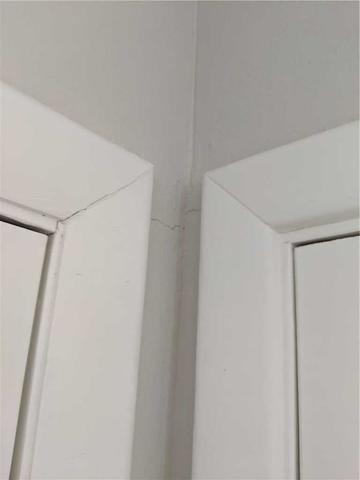

Dry Wall Crack - Mesa Arizona

Dry wall cracks are a common symptom of a foundation issue.

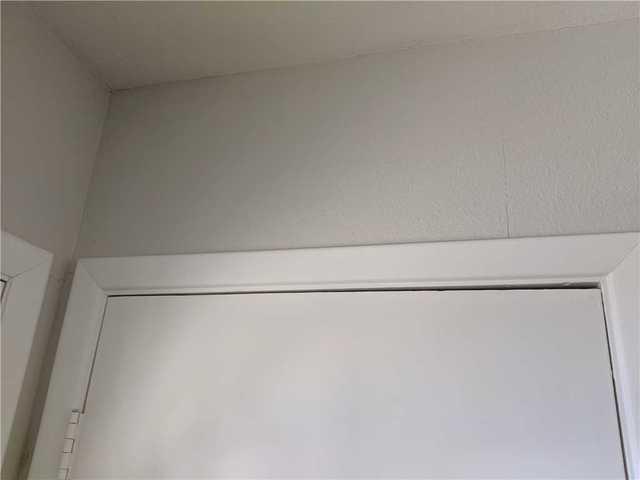

Door Out of Square - Mesa Arizona

Doors & windows being 'out of square' is a common symptom of a foundation problem. 'Out of square' means they do not open / close properly. You may notice gaps as well (pictured).

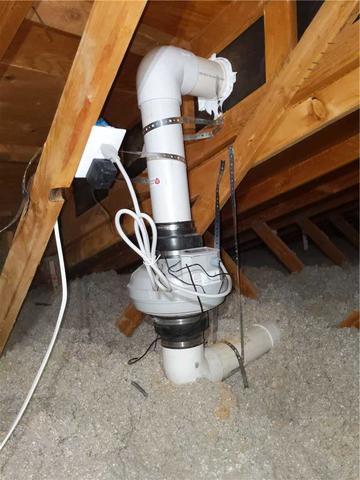

Mesa MoistureLevel Attic Install

Fully installed MoistureLevel Smart Foundation System Vacuum. The MoistureLevel® Smart Foundation System borrows from our reliable radon mitigation technology, using a vacuum and ventilation pipe to create air movement as well as suction on the under-slab soil. Introducing outside air to the damp, expansive soils causes evaporation to take place, making it possible to reduce soil moisture and as a result, damaging soil expansion.
